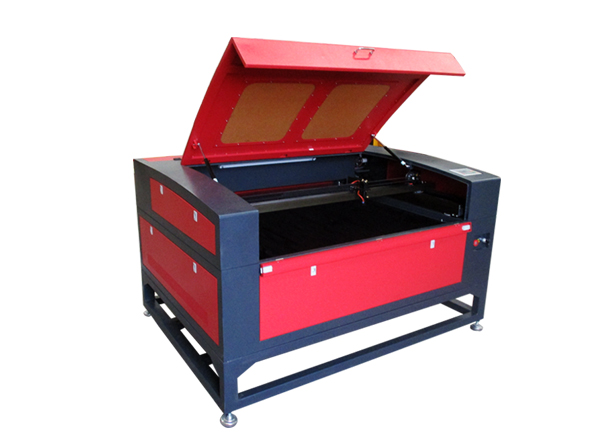

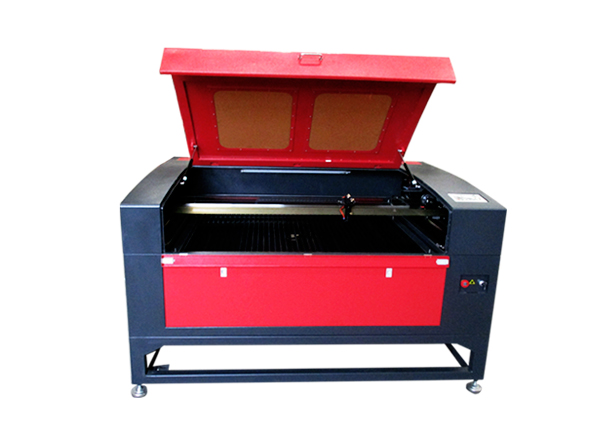

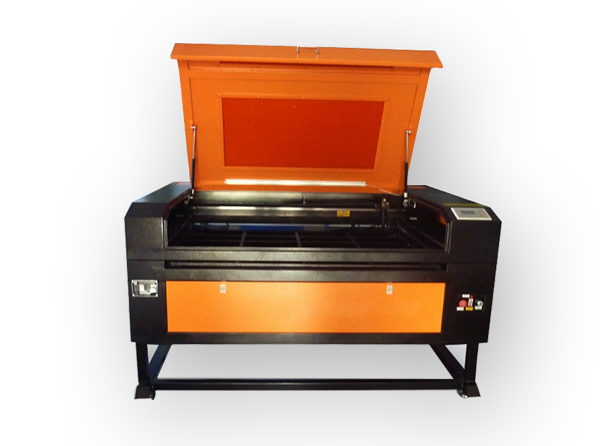

1390D Laser Engraving cutting Machine

Product parameters

Application: Laser Cutting

Condition: New Laser

Laser Type: CO2

Applicable Material: Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood

Cutting Thickness: 0-15mm

Cutting Area: 1300x900mm

Cutting Speed: 500m/s, 500 mm/s

CNC or Not: Yes

Cooling Mode: Water Cooling

Control Software: TAJIMA , CorelDraw, AutoCAD, Photoshop

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Place of Origin: Shandong, China (Mainland)

Brand Name: Guangyue

Model Number: GY-1390

Certification: CE

After-sales Service Provided: Engineers available to service machinery overseas

laser power: 60W/80W/100W

Laser Tube: Sealed CO2 glass Tube

Engraving Speedd: 1500mm/s

Resolution: 1000DPI

Minimum Letter: English 1x1mm (Chinese Characters 2x2mm)

Software: CorelDraw/CAD (Direct Output)

Motor: Stepper motor

Power Voltage: AC 110-220V±10%,50-60Hz

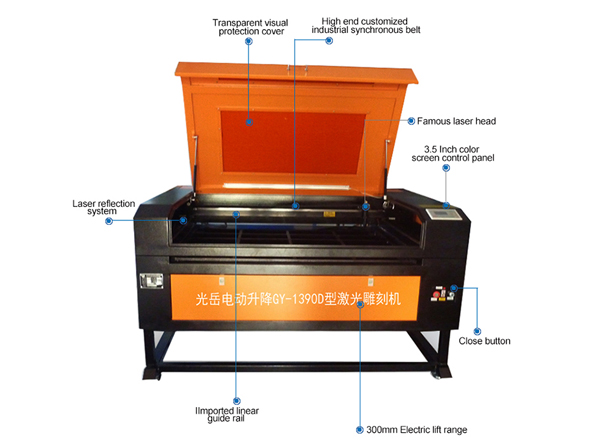

Product features

GY-1390D advertising equipment acrylic laser engraving machine, laser energy can be adjustable, with 30 cm electric lifting platform, and Through the material before and after, the red light positioning system, automatic focusing device, the country's top drive system, high speed and high efficiency.

More stable and more resistant to high voltage electrostatic interference, If cut off the power supply, continue to engrave when switching power supply, Through the material before and after, working table can up and down. Rotary engraving. Left and right horizontal pushing, support online operation and USB operation.

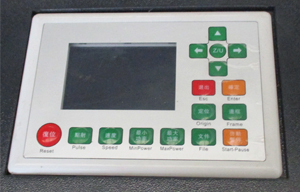

3.5 inch color screen operation panel

Intelligent operation interface

More stable and more resistant to high voltage electrostatic interference,

If cut off the power supply, continue to engrave when switching power supply,

Through the material before and after, working table can up and down. Rotary

engraving. Left and right horizontal pushing, support online operation and

USB operation.

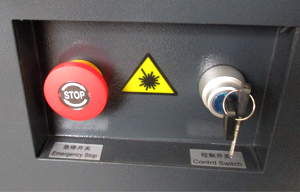

Emergency stop switch, control switch

Close button

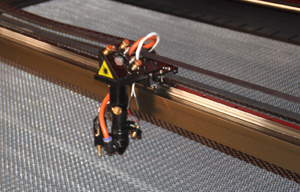

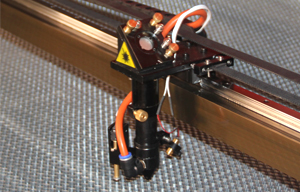

Industrial adjustable laser head

Equipped with automatic focusing function, 5 cm below the telescopic laser head,

according to the thickness of the material at any time increase or decrease

in height, convenient, fast, easy to use is Guangyue engineers design purpose.

The hole site of the real machine mold precision

The  hole site of the real machine mold precision, hole position precision

of every detail, it’s fine and perfect.

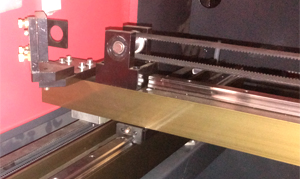

Precision imported linear guide rail

Support through the entire track length of the load, reduce the wear

of the cross beam, to better ensure the cutting accuracy.

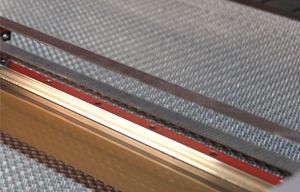

High end custom industrial synchronous belt

High end custom industrial synchronous belt safety and stability.

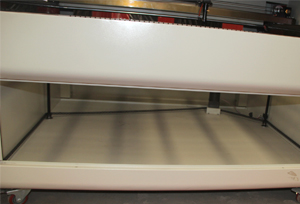

Super high electric lift platform.

The machine has 50 cm electric lift system to meet the processing

requirements of high / thick products.

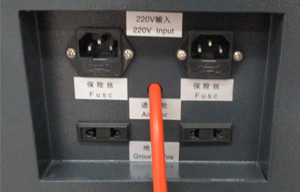

Porous socket

Porous socket, 220V power input, high sensitivity leakage

protection, ground access more protection, meet the

standards of the EU market.

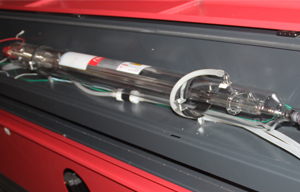

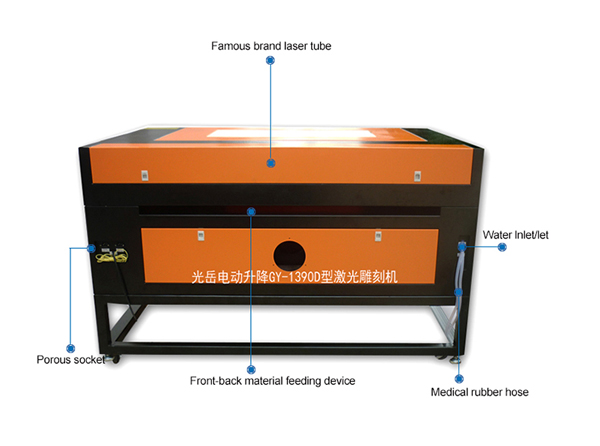

Brand laser tube + patent protection

Brand laser tube, high power, good pattern, cutting speed fast， small volume,

special protect the frame, convenient adjustment precision, all-round protection.

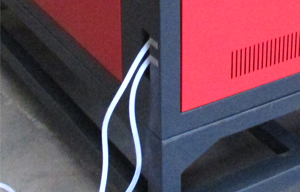

Medical rubber hose

GuangYue Laser cooling tube with medical rubber hose, soft and durable.

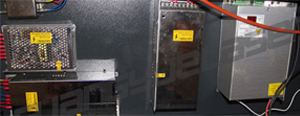

Central control

DSP digital chip brings a clear and precise control system, can complete the high

 requirements, high quality graphics analysis and transmission of accurate graphic

 information commands.Hongyuan laser power supply, domestic brands laser power supply,

like a strong heart to the laser provides strong power and stability.

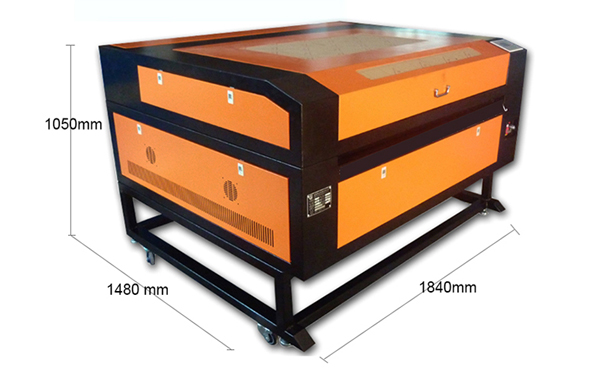

Product size

1050mm*1480mm*1840mm

Product packaging

Standard export package,free-fumigation plywood case.

Optionnal configuration

Laser head

Famous brand laser head, high working efficiency, precise engraving and cutting,

Two heads, three heads, four heads（optional）.

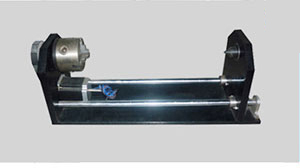

Special rotary

Can be engraved irregular cylinder material.

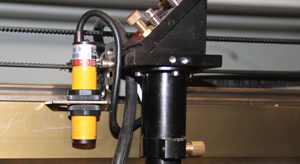

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

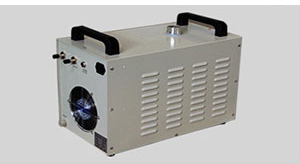

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

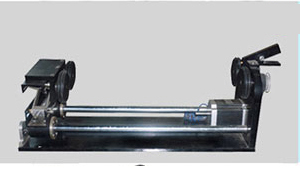

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

Applied materials

【Applicable materials】:Plexiglass acrylic,PVC material,leather,plastic,rubber,

plastic,wooden product,paper Products,stone Products,ceramics,non-woven,MDF,

felt and other non-metallic materials.

【Applicable industries】:Garment industry,packaging box industry,imaging

products industry,writing brush industry,bamboo industry,handicraft industry,

musical instrument industry,plate making industry,advertising industry,aerospace

model car model,leather industry,calabash gourd industry an so on.
