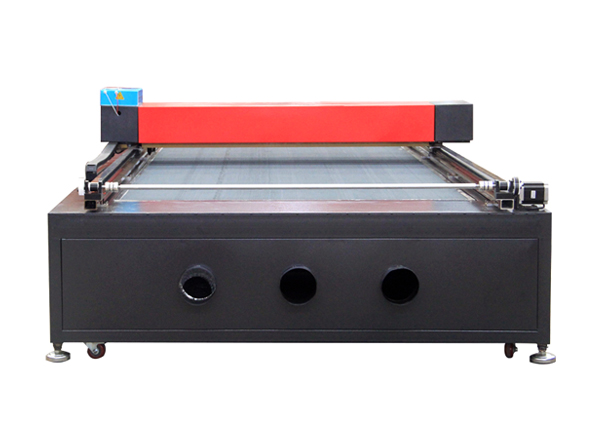

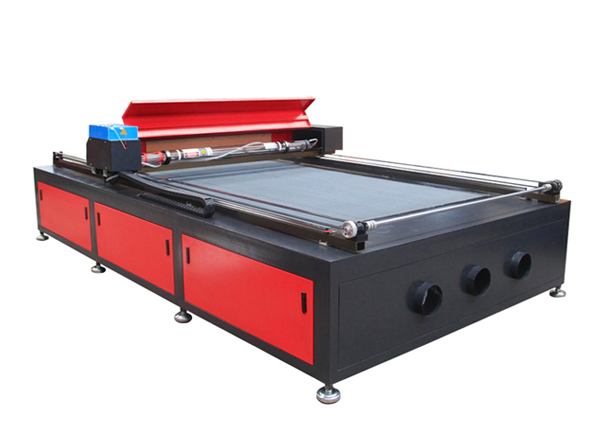

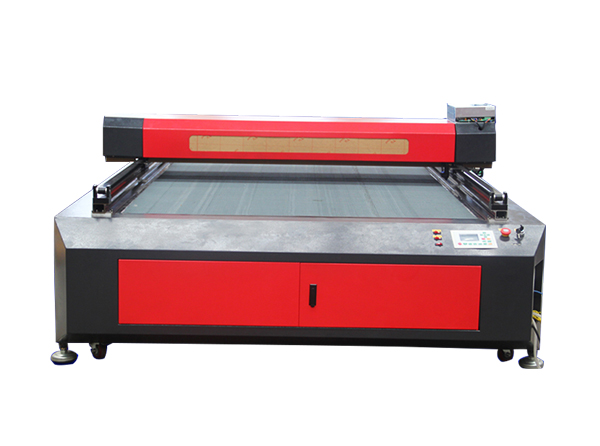

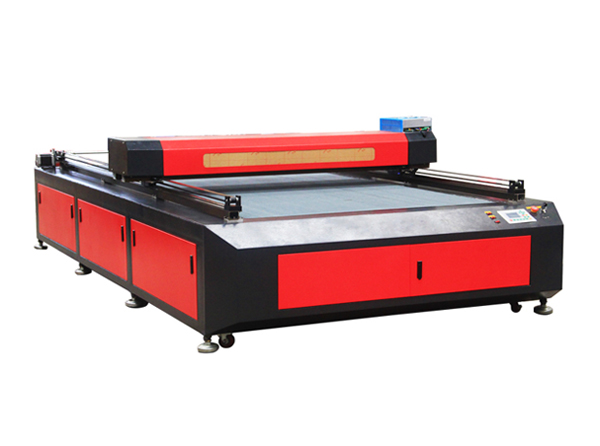

GY-1530 Cutting and engraving laser cutting machine

Product description

Brand：GuangYue （LES）

Model: GY-1530

Application: Laser Cutting

Condition:  New Laser

Laser Type: CO2 sealed off glass laser, wavelength 10.64um

Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax,

                                    Plywood, Rubber, Stone, Wood

Cutting Thickness: 0-20mm

Working Area: 1500x3000mm

Cutting Speed: 500m/s

Engraving Speedd:1500mm/s

CNC or Not: Yes

Repeated positioning accuracy:±0.1mm

Cooling Mode: Water Cooling

Control Software: TAJIMA , CorelDraw, AutoCAD,Photoshop

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Place of Origin: Shandong, China (Mainland)

Certification: CE, ISO

After-sales Service Provided: Engineers available to service machinery overseas

Total power:1100-3000W

Software: CorelDraw/CAD (Direct Output)

Motor: 86 Stepper motor

Power Voltage: AC 110-220V±10%,50-60Hz

Product features

GY-1530 Cutting and engraving laser cutting machine,Gantry servo system ,DSPcontrol system,High precision cutting humanized design,High efficiency and precision stability.

The nine major advantage of perfection

Red positioning

Adjustable laser energy

Communication monitoring

Water temperature control protection

Blowing flame retardant

power off remember function

High speed control system

Precise mechanical system

Powerful software systems

Product details

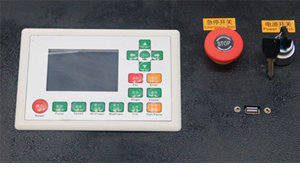

3.5 inch color screen

Intelligent human-machine operating interface

More stable ,More resistant to high pressure and anti-static

Continued carving off function ,working time anticipation

Support feeding,lifting,rotary engraving and push left and right

Support Ethernet  and USB communication.

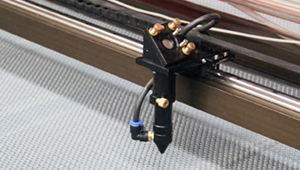

Industrial adjustable laser head

Optional automatic focus system,125px adjustable up and down laser head,increase or decrease the height according to the thickness of material at any time.Our design purpose is fast and convenient to use.

Precise mechanical System

Imported linear guide,3M synchronous  belt,just motion control drive systems,

large torque stepping motor,make the processing,more accurate cutting.

Control switch

In operation, each switch with each other, work together to make it work safe, efficient and fast.

High end customized industrial synchronous belt

High end customized industrial synchronous belt,the safe and stable.

The central control area

DSP digital chip can provide the operating system with high accuracy and high sharpness. It also can finish graphic analysis with high requirements and high quality,can deliver the accurate graphic information command.Just like an elite’s brain which has a well thought-out plan, can do everything in an orderly way.Hongyuan laser power supply-domestic.

Famous brand laser tube

Famous brand laser tube, high power mode, fast cutting speed, small size, special protection rack, easy to adjust and accurate, comprehensive protection.

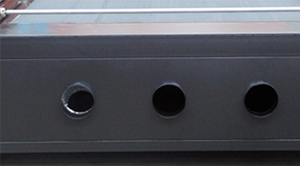

Air outlet

Exhaust air outlet, large diameter outlet, suction strong, smoke exhaust dust effect is better.

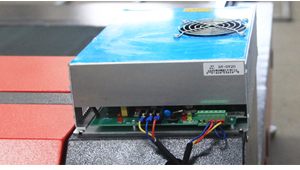

Domestic famous laser power supply

Domestic famous laser power supply，output is stable,power is strong,excellent quality.

Imported precision linear guide system

It supports the load through the entire stroke length reduce the wear of the beam,and to ensure a better cutting precision.

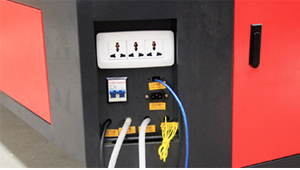

Power  distribution system

Porous socket, convenient and intimate, 220V power input, high sensitive leakage protector, ground wire access to more security.Meet eu market access standards.

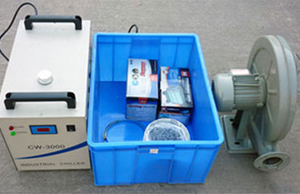

Cooling parts

High power medium voltage machine,high-power pump,refrigerator.The use of safe, long life.

86 Stepper motor

The motor is 2 times more powerful than ordinary motor, with strong power, reliable performance, safe and fast operation and stable operation.

Product size

3600mm*2000mm*1050mm

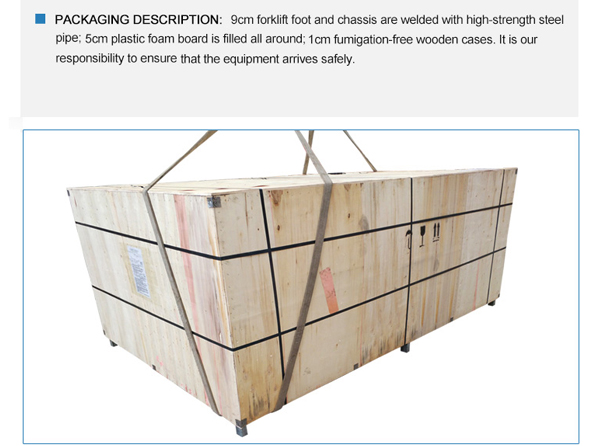

Product packaging

Standard export package,free-fumigation plywood case.

Certification

1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.

Optionnal configuration

Laser head

Famous brand laser head, high working efficiency, precise engraving and cutting,

Two heads, three heads, four heads（optional）.

Special rotary

Can be engraved irregular cylinder material.

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

Applied materials

【Applicable materials】:Plexiglass acrylic,PVC material,leather,plastic,rubber,

plastic,wooden product,paper products,stone products,ceramics,non-woven,MDF,

felt and other non-metallic materials.

【Applicable industries】:Garment industry,felt the cutting,packaging box

industry,imaging products industry,writing brush industry,bamboo industry,

handicraft industry,musical instrument industry,plate making industry,

advertising industry,aerospace model car model,leather industry,calabash gourd

industry,toy Industry an so on.
