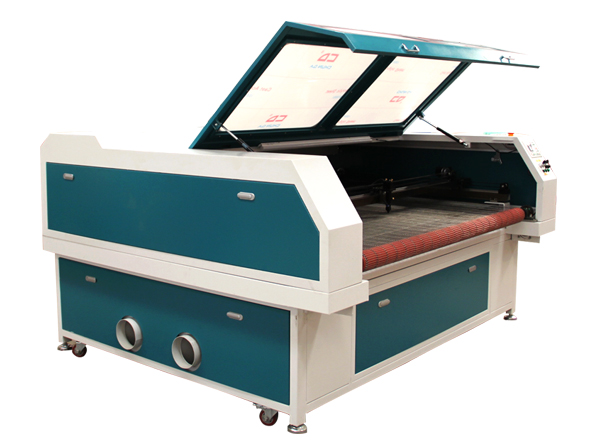

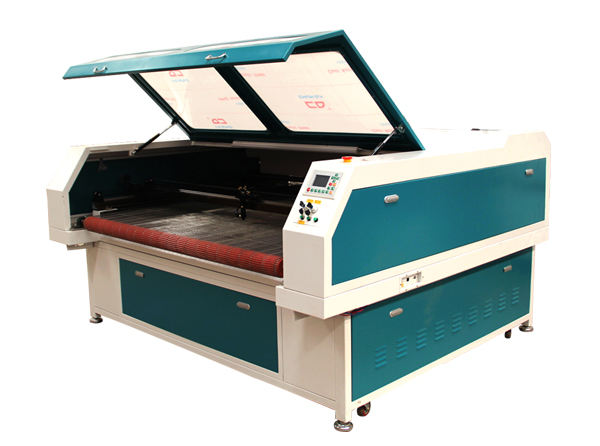

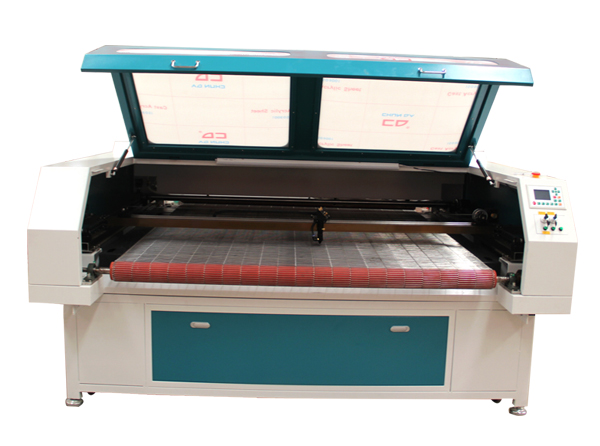

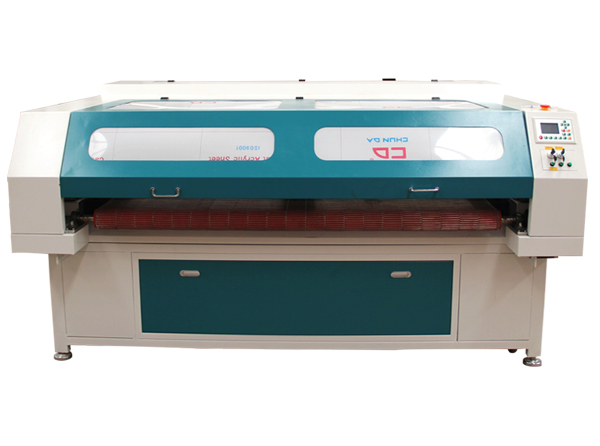

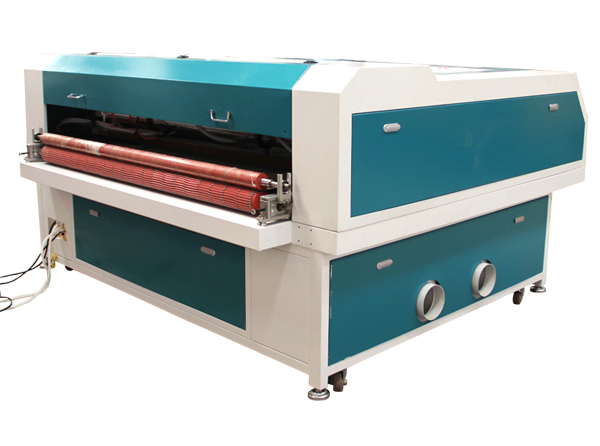

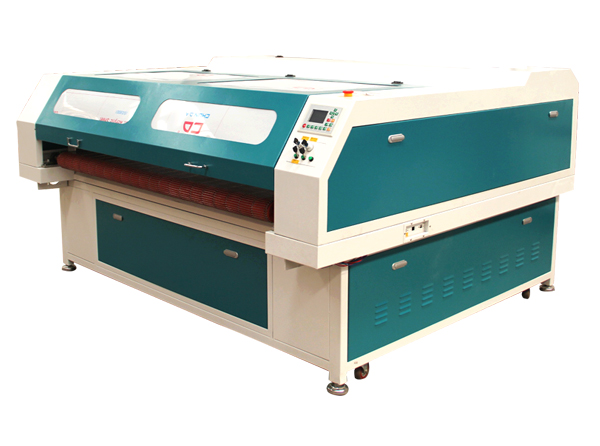

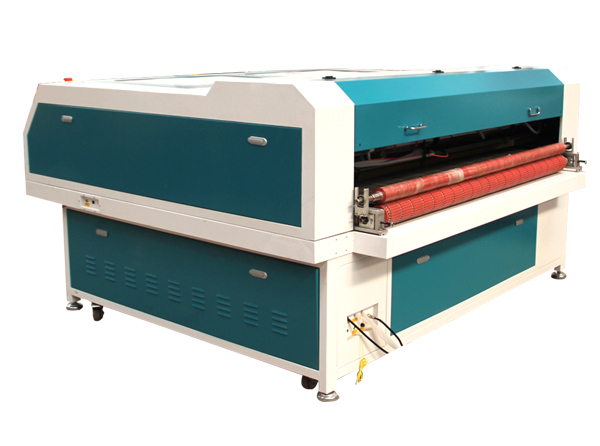

Q1610 full automatic feed Laser Cutting Machine

Product parameters

Brand：GuangYue （LES）

Model: GY-Q1610

Application: Laser Cutting

Condition: New Laser

Repeated positioning accuracy：±0.1mm

Cutting Area: 1600x1000mm

Cutting Speed: 500m/s

Engraving speed:1500mm/s

CNC or Not: Yes

Cooling Mode: Water Cooling

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Place of Origin: Shandong, China (Mainland)

Certification: CE

After-sales Service Provided: Engineers available to service machinery overseas

laser power:60W/ 80W/100W/150W

Laser Tybe: CO2 sealed off glass laser, wavelength 10.64um

Resolution: 1000DPI

Minimum Letter: Chinese 2mm,  English1mm

Total power：1000-1500W

Support software: CorelDraw/CAD (Direct Output)

Motor: 86 Stepper motor

Power Voltage: AC 110-220V±10%,50-60Hz

Product features

GY-Q1610 Automatic feeding  laser cutting machine, Gantry servo system ,DSPcontrol system,Strong and stable and efficient.

Full automatic feeding Q1610: flexible, stable, efficient and accurate

The nine major advantage of perfection

Red positioning

Adjustable laser energy

Communication monitoring

Water temperature control protection

Blowing flame retardant

power off remember function

High speed control system

Precise mechanical system

Powerful software systems

• Stable and efficient feeding system

Product details

3.5 inch color screen

Intelligent human-machine operating interface

More stable ,More resistant to high pressure and anti-static

Continued carving off function ,working time anticipation

Support feeding,lifting,rotary engraving and push left and right

Support Ethernet  and USB communication.

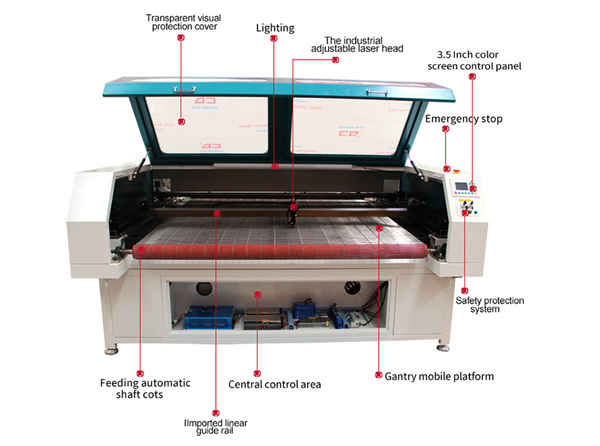

Industrial adjustable laser head

Optional automatic focus system,125px adjustable up and down laser head,increase or decrease the height according to the thickness of material at any time.Our design purpose is fast and convenient to use.

Precise mechanical System

Imported linear guide,3M synchronous  belt,just motion control drive systems,

large torque stepping motor,make the processing,more accurate cutting.

Control switch

In operation, each switch with each other, work together to make it work safe, efficient and fast.

High end customized industrial synchronous belt

High end customized industrial synchronous belt,the safe and stable.

The central control area

DSP digital chip can provide the operating system with high accuracy and high sharpness. It also can finish graphic analysis with high requirements and high quality,can deliver the accurate graphic information command.Just like an elite’s brain which has a well thought-out plan, can do everything in an orderly way.Hongyuan laser power supply-domestic.

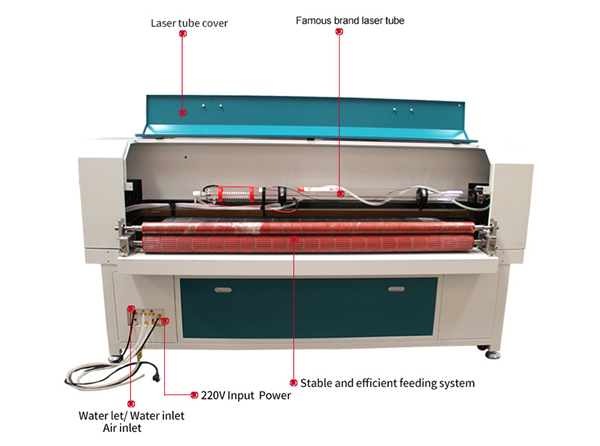

Famous brand laser tube

Famous brand laser tube, high power mode, fast cutting speed, small size, special protection rack, easy to adjust and accurate, comprehensive protection.

Imported precision linear guide system

It supports the load through the entire stroke length reduce the wear of the beam,and to ensure a better cutting precision.

• Inlet and outlet air pipes

In the work, better water and water, greatly improved the work efficiency and quality.

Cooling parts

High power medium voltage machine,high-power pump,refrigerator.The use of safe, long life.

USB Interfaces

USB interface, external equipment convenient, more human, more secure, one step in place.

Gantry servo platform

Gantry servo system，maximum limit reduces the loss of laser, to ensure the best use of the laser.

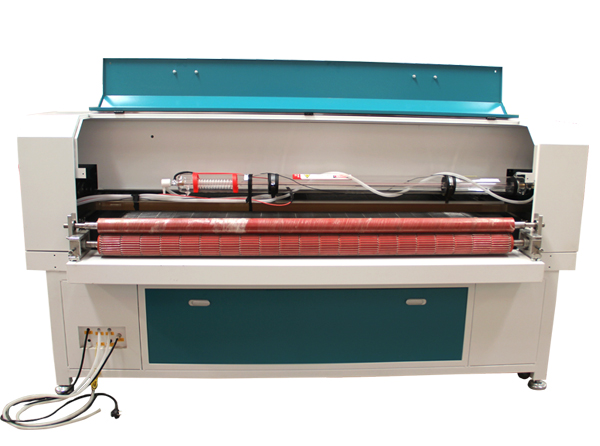

Stableand efficient feed system

Just Motion 86 synchronous motor & drive transmission system,owns a strongest heart. EU industrial grade

rubber roller and excellent belt，which just like a dexterous hand,can working with no difficulties in any thinner or exquisite fabrics.

Suction system

Cloth and leather can be adsorbed on the platform, ensuring the cutting incision smooth.

Product size

2300mm*1860mm*1100mm

Product packaging

Standard export package,free-fumigation plywood case

Certification

1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.

Optionnal configuration

Laser head

Famous brand laser head, high working efficiency, precise engraving and cutting,

Two heads, three heads, four heads（optional）.

Special rotary

Can be engraved irregular cylinder material.

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

Applied materials

【Applicable materials】:Plexiglass acrylic,PVC material,leather,plastic,rubber,

plastic,wooden product,paper products,stone products,ceramics,non-woven,MDF,

felt and other non-metallic materials.

【Applicable industries】:Garment industry,felt the cutting,packaging box

industry,imaging products industry,writing brush industry,bamboo industry,

handicraft industry,musical instrument industry,plate making industry,

advertising industry,aerospace model car model,leather industry,calabash gourd

industry,toy Industry an so on.
